Welded Wire Mesh Machine

Welded Wire Mesh Machine

FOB Price:US $7,000-13,500/Set

Min.Order Quantity:1 Set/Sets

Supply Ability:25/Sets per Month

Port:Tianjin

Payment Terms:T/T, L/C, Western Union

Get Quote

Details

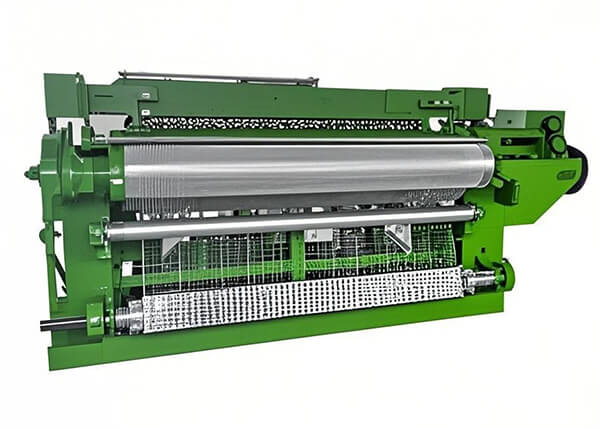

Welded wire mesh machines is used for making roll type welded wire mesh, usually use thinner wire.this kind of roll wire mesh is characterized by flat mesh surface, uniform mesh, firm welding joints, good local machining performance, stability and good corrosion resistance.the commonly used wires are galvanized wire, hot-dip galvanized wire, black iron wire, etc

It is widely used in industry, mining, agriculture, construction, transportation, such as the animal fence, window guard, channel fences and decorations.

Our welded wire mesh machine can be customized as customer required different specification.

ModelYP-1200YP-1500YP-1800YP-2100
Mesh WidthMax 1200mmMax 1500mmMax 1800mmMax 2100mm
Mesh Hole Size1/2'' 3/4'' 1'' 2''1/2'' 3/4'' 1'' 2''1/2'' 3/4'' 1'' 2''1/2'' 3/4'' 1'' 2''
Wire Diameter0.6-2.7mm0.6-2.7mm0.6-2.7mm0.6-2.7mm
Welding Speed 80-150times/min80-150times/min80-150times/min80-120times/min
Transformer85KVAX485KVAX585KVAX685KVAX7
Voltage380V /415V /440V (can customized)380V /415V /440V (can customized)380V /415V /440V (can customized)380V /415V /440V (can customized)
Dimensions2750X1850X1500mm3050X1850X1500mm3550X1850X1600mm3850X1950X1650mm
Weight2.5T3T3.5T4T
